Model Whirlpool 2233^1A ELECTRIC RANGE – Common Parts & Diagrams

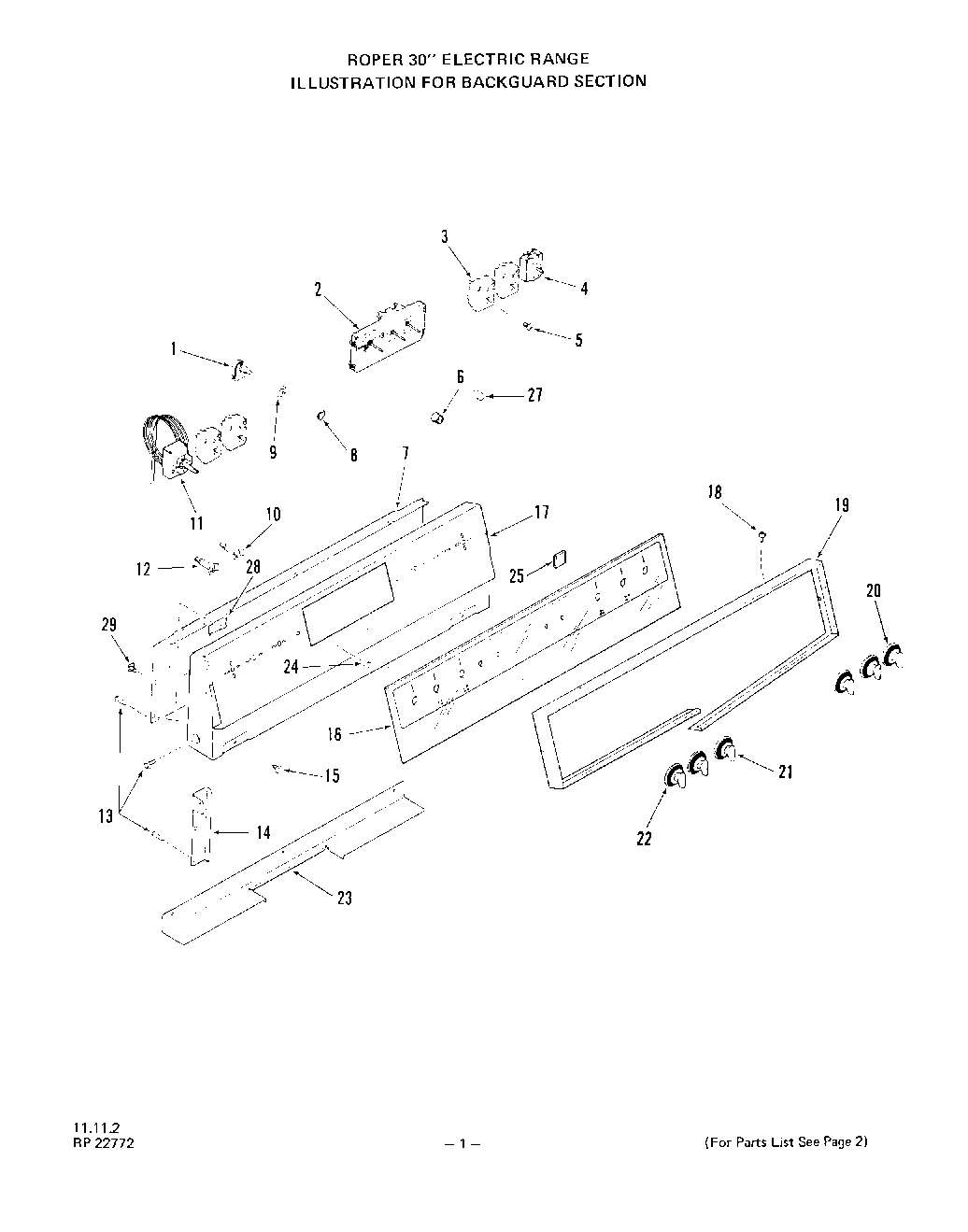

01 - BACKGUARD
06 - ROTISSERIE , GRIDDLE

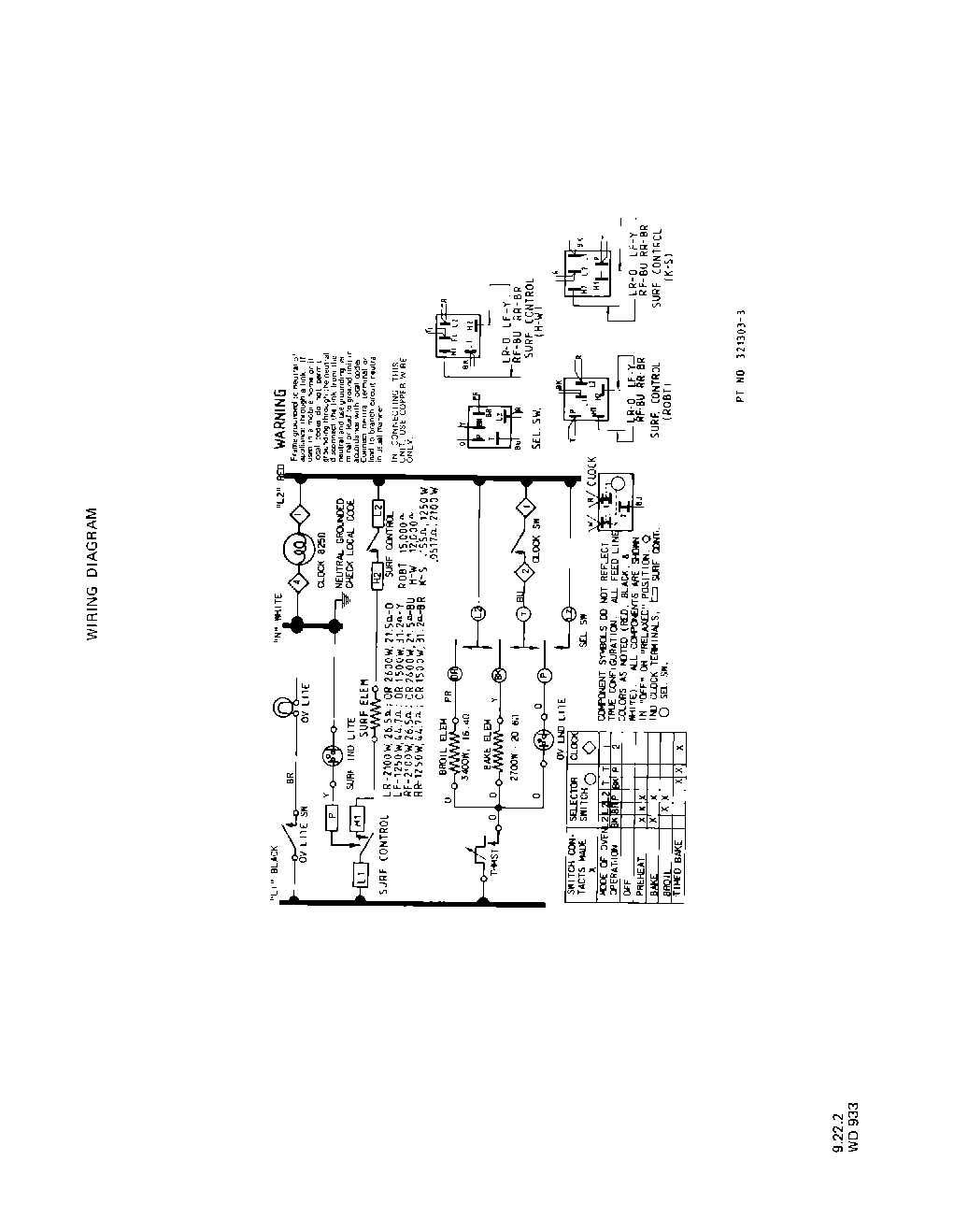

08 - SECTION

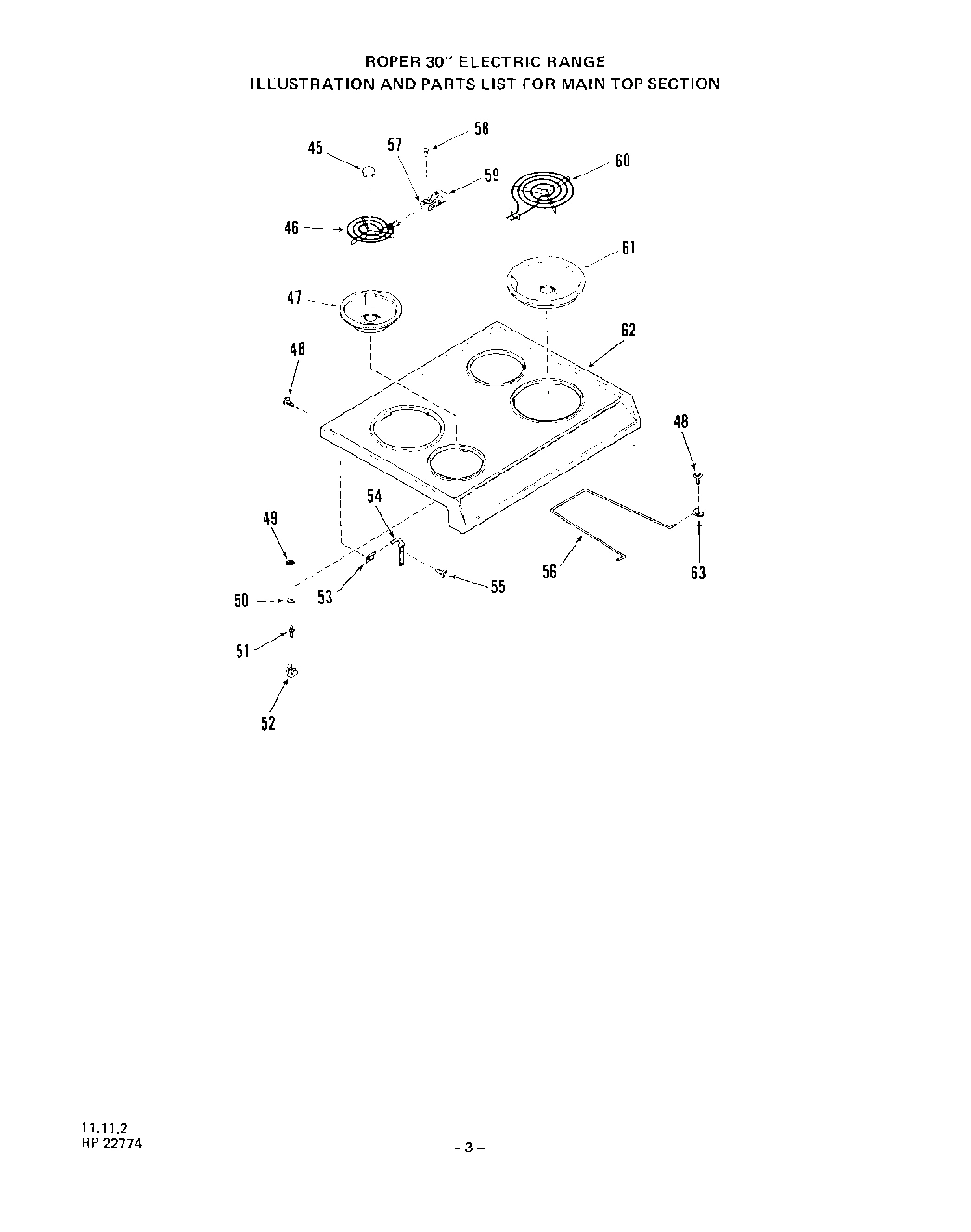

02 - MAIN TOP

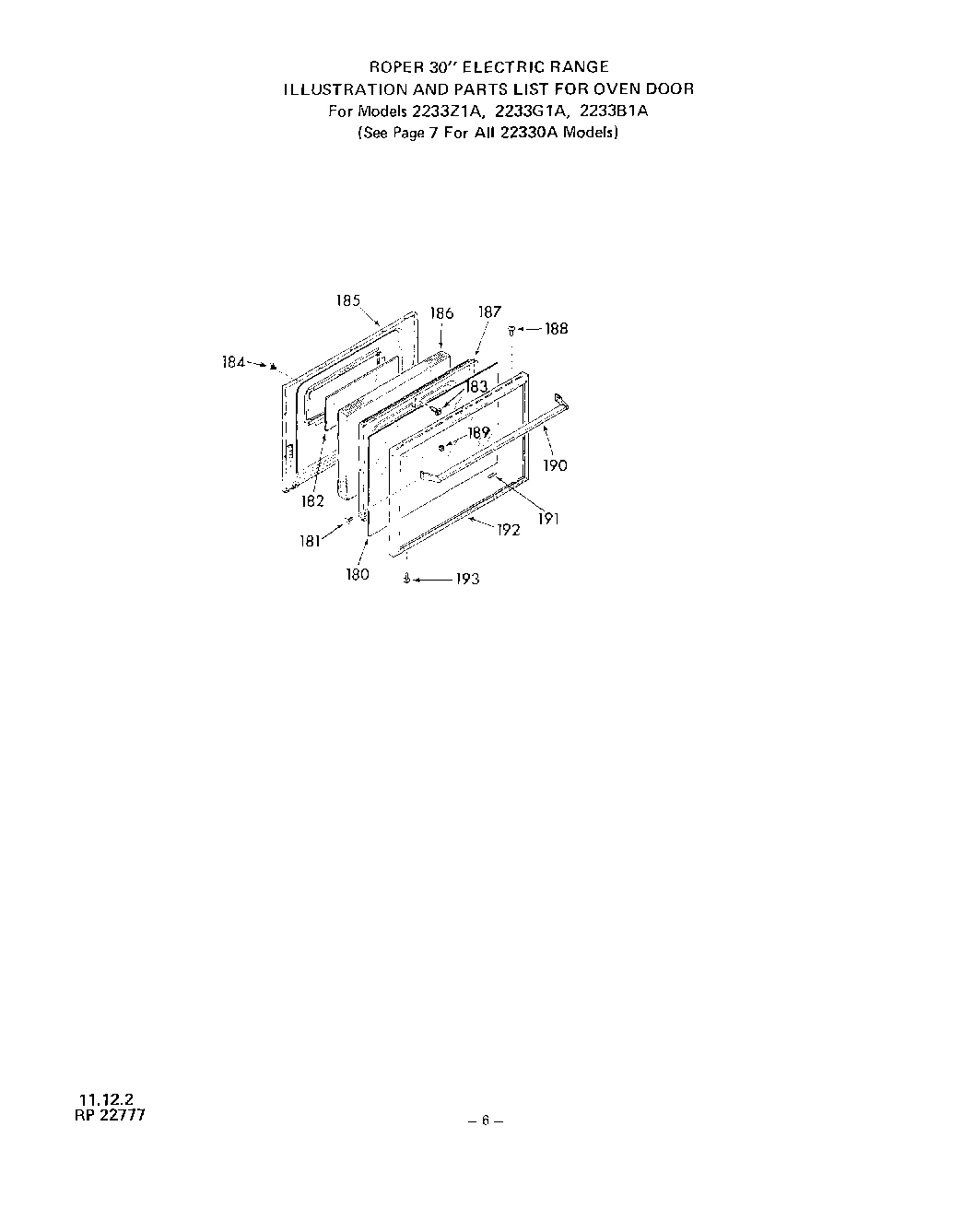

04 - OVEN DOOR
05 - SECTION

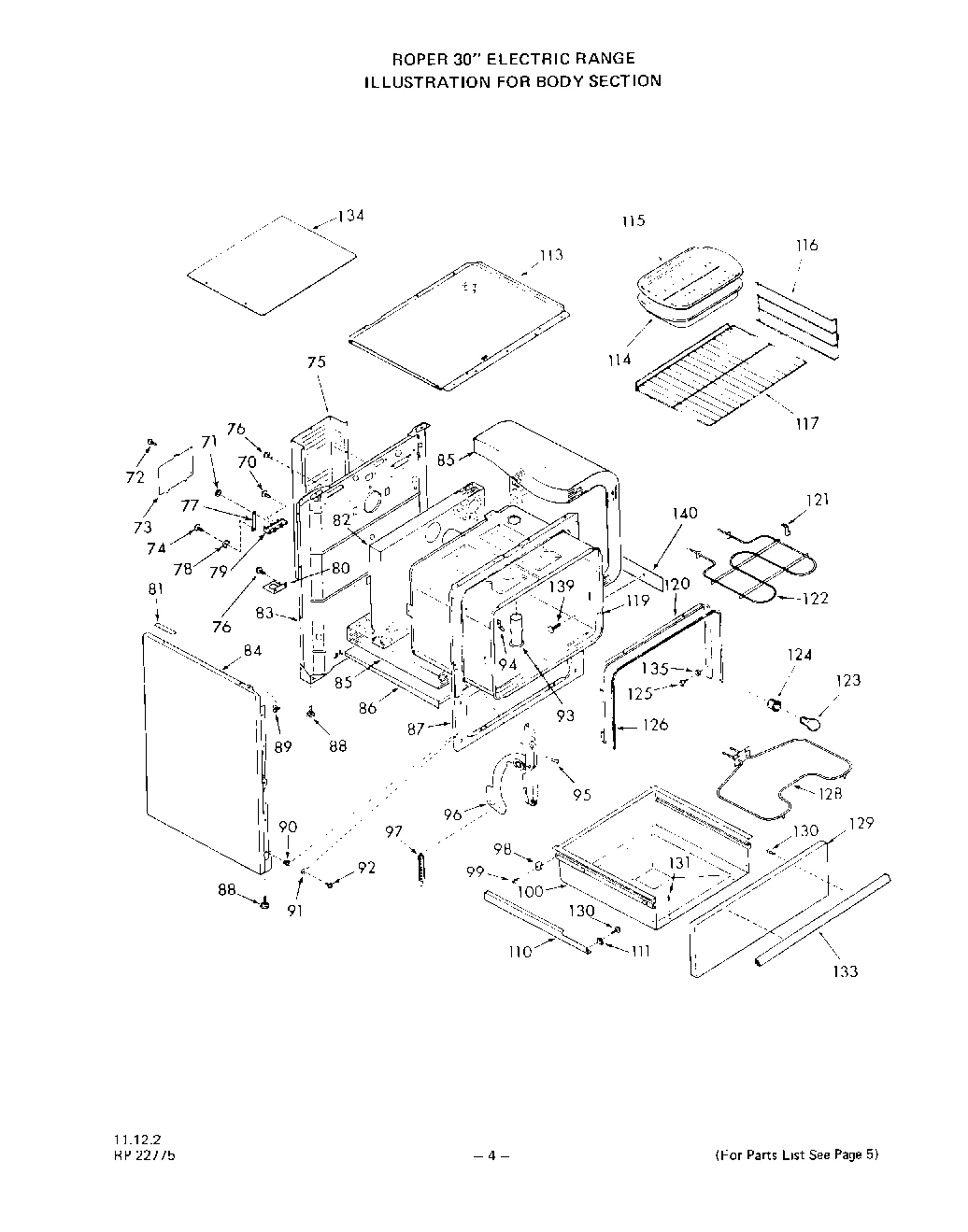

03 - BODY
Common parts from model Whirlpool 2233^1A ELECTRIC RANGE
1
Push Switch-Oven Light WPL 298794 Contact Us For Availability
2
Clock w/1 Hr. Timer WPL 322305 Contact Us For Availability
3
Infinite Control (Lt. Front, Rt. Rear) WPL 320945 Contact Us For Availability
3
Infinite Control (Rt. Front, Lt. Rear) WPL 320946 Contact Us For Availability
4
Selector Switch WPL 320942 Contact Us For Availability
5
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
6
Knob-Clock (Minute Timer) WPL 294810 Contact Us For Availability
7
Wire Cover-Backguard WPL 320767 Contact Us For Availability
8
Nut-Trim 3/8-27 WPL 109883 Contact Us For Availability
9
Lock Nut WPL 236129 Contact Us For Availability
10
Indicator Light-Surface WPL 288247 Contact Us For Availability
11
Oven Thermostat WPL 320937 Contact Us For Availability
12
Indicator Light-Oven WPL 288970 Contact Us For Availability
14
Support-Backguard (Right) WPL 310601 Contact Us For Availability
14
Support-Backguard (Left) WPL 310602 Contact Us For Availability
16
Backguard Glass WPL 322298 Contact Us For Availability
17
Crosstie-Backguard (White) WPL 319963 Contact Us For Availability
17
Crosstie-Backguard (Coffee) WPL 319964 Contact Us For Availability
17
Crosstie-Backguard (Avocado) WPL 319965 Contact Us For Availability
17
Crosstie-Backguard (Golden Wheat) WPL 319966 Contact Us For Availability
17
Crosstie-Backguard (Almond) WPL 319967 Contact Us For Availability
18
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
19
Bezel-Backguard WPL 308007 Contact Us For Availability
20
Knob-Selector Switch WPL 321052 Contact Us For Availability
21
Knob-Infinite Control (4 Required) WPL 321051 Contact Us For Availability
22
Knob-Oven Thermostat WPL 321053 Contact Us For Availability
23
Bottom-Wire Cover WPL 315434 Contact Us For Availability
24
Lens-Indicator Light (2 Required) WPL 233161 Contact Us For Availability
25
Spacer-Backguard Glass (2 Required) WPL 322302 Contact Us For Availability
27
Knob-Clock (Start & Stop Time) (2) WPL 109225 Contact Us For Availability
28
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
29
Clip WPL 70588 Contact Us For Availability
45
Medallion (4 Required) WPL 318586 Contact Us For Availability
46
6`` Surface Element (Lt. Frt. & Rt. Rr.) WPL 318587 Contact Us For Availability
47
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
48
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
49
Keps Nut 8-32 WPL 239764 Contact Us For Availability
50
Washer WPL 99279 Contact Us For Availability
51
Strike-Main Top (Lt. or Rt.) WPL 299784 Contact Us For Availability
52
Catch-Main Top Strike (2 Req.) WPL 71003 Contact Us For Availability
53
Bracket-Hinge (Lt. or Rt.) WPL 320931 Contact Us For Availability
54
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
54
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
55
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
56
Support Rod-Main Top WPL 284164 Contact Us For Availability
57
Bracket-Terminal Block WPL 318872 Contact Us For Availability
58
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
59
Terminal Block w/Wire Lead (4 Required) WPL 318960 Contact Us For Availability
60
8`` Surface Element (Rt. Frt. & Lt. Rr.) WPL 318589 Contact Us For Availability
61
8`` Burner Bowl (Rt. Frt. & Lt. Rr.) WPL 304969 Contact Us For Availability
62
Main Top (White) WPL 320960 Contact Us For Availability
62
Main Top (Coffee) WPL 320961 Contact Us For Availability
62
Main Top (Avocado) WPL 320962 Contact Us For Availability
62
Main Top (Golden Wheat) WPL 320963 Contact Us For Availability
62
Main Top (Almond) WPL 320964 Contact Us For Availability
63
Clip WPL 285945 Contact Us For Availability
70
Screw 10-32x1`` WPL 313190 Contact Us For Availability
71
Hex Nut 10-32 WPL 97816 Contact Us For Availability
73
Access Plate WPL 299472 Contact Us For Availability
74
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
75
Wire Cover-Main Back WPL 296026 Contact Us For Availability
77
Ground Strap WPL 304987 Contact Us For Availability
78
Washer WPL 299425 Contact Us For Availability
79
Junction Block WPL 290105 Contact Us For Availability
80
Range Service Mounting Plate WPL 281903 Contact Us For Availability
81
Pad-Body Side (2 Required) WPL 303513 Contact Us For Availability
82
Insulation - Oven Back WPL 296140 Contact Us For Availability
83
Main Back WPL 322229 Contact Us For Availability
84
White WPL 323084 Contact Us For Availability
84
Body Side-Lt. (White) WPL 323085 Contact Us For Availability
84
Coffee WPL 323086 Contact Us For Availability
84
Body Side-Lt. (Coffee) WPL 323087 Contact Us For Availability
84
Avocado WPL 323088 Contact Us For Availability
84
Body Side-Lt. (Avocado) WPL 323089 Contact Us For Availability
84
Golden Wheat WPL 323090 Contact Us For Availability
84
Body Side-Lt. (Golden Wheat) WPL 323091 Contact Us For Availability
84
Almond WPL 323092 Contact Us For Availability
84
Body Side-Lt. (Almond) WPL 323093 Contact Us For Availability
85
Insulation-Oven Top, Bottom & Sides (1 Pc) WPL 296138 Contact Us For Availability
86
Retainer-Insulation WPL 313281 Contact Us For Availability
87
Front Frame WPL 316996 Contact Us For Availability
88
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
90
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
91
Washer WPL 303963 Contact Us For Availability
93
Oven Vent Tube WPL 308726 Contact Us For Availability
94
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
95
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
96
Oven Door Hinge (Right) WPL 303132 Contact Us For Availability
96
Oven Door Hinge (Left) WPL 303133 Contact Us For Availability
97
Spring-Oven Door (2 Required) WPL 296170 Contact Us For Availability
98
Rear Slide Block-Service Drawer WPL 281913 Contact Us For Availability
99
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
100
Service Drawer WPL 296150 Contact Us For Availability
110
Support-Service Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
111
Front Slide Block-Service Drawer WPL 281914 Contact Us For Availability
113
Burner Box Bottom WPL 322110 Contact Us For Availability
114
Broiler Pan WPL 293098 Contact Us For Availability
115
Broiler Pan Grid WPL 293099 Contact Us For Availability
116
Oven Rack Guide-Rt. or Lt. WPL 305409 Contact Us For Availability
117
Oven Rack (2 Required) WPL 305408 Contact Us For Availability
119
Oven Body WPL 315353 Contact Us For Availability
120
Retainer - Oven Door Seal WPL 296103 Contact Us For Availability
121
Support-Broiler Elem WPL 285840 Contact Us For Availability
122
WPL 319487 WPL 319487 Contact Us For Availability
123
WPL 111257 WPL 111257 Contact Us For Availability
124
WPL 87883 WPL 87883 Contact Us For Availability
126
WPL 296102 WPL 296102 Contact Us For Availability
129
WPL 307750 WPL 307750 Contact Us For Availability
129
WPL 309042 WPL 309042 Contact Us For Availability
129
WPL 309043 WPL 309043 Contact Us For Availability
129
WPL 309044 WPL 309044 Contact Us For Availability
130
WPL 295850 WPL 295850 Contact Us For Availability
131
WPL 316365 WPL 316365 Contact Us For Availability
133
WPL 292240 WPL 292240 Contact Us For Availability
134
WPL 319163 WPL 319163 Contact Us For Availability
135
WPL 21067 WPL 21067 Contact Us For Availability
139
WPL 296097 WPL 296097 Contact Us For Availability
140
WPL 314487 WPL 314487 Contact Us For Availability
180
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
181
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
182
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
183
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
185
Lining - Oven Door WPL 296206 Contact Us For Availability
186
Insulation-Oven Door WPL 303556 Contact Us For Availability
187
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
188
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
190
Handle-Oven Door WPL 303342 Contact Us For Availability
191
Cushion-Door Glass (3 Required) WPL 112370 Contact Us For Availability
192
Frame-Oven Door Glass WPL 296473 Contact Us For Availability
193
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
223
Cushion-Door Glass (2 Required) WPL 282259 Contact Us For Availability
226
Retainer-Insulation & Glass WPL 296212 Contact Us For Availability
227
Oven Door Glass-Outer WPL 302014 Contact Us For Availability
228
Front Panel-Oven Door (White) WPL 310373 Contact Us For Availability
228
Front Panel-Oven Door (Almond) WPL 310374 Contact Us For Availability
228
Front Panel-Oven Door (Coffee) WPL 310375 Contact Us For Availability
228
Front Panel-Oven Door (Golden Wheat) WPL 310377 Contact Us For Availability
230
Spacer-Door Handle WPL 302343 Contact Us For Availability
231
Oven Door Spacer WPL 296224 Contact Us For Availability
233
Door Glass Retainer WPL 299592 Contact Us For Availability
234
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
235
Insulation WPL 296142 Contact Us For Availability
237
Main Top WPL 322326 Contact Us For Availability
237
Thermostat WPL 322877 Contact Us For Availability
237
Controls WPL 322878 Contact Us For Availability
× ![]()
